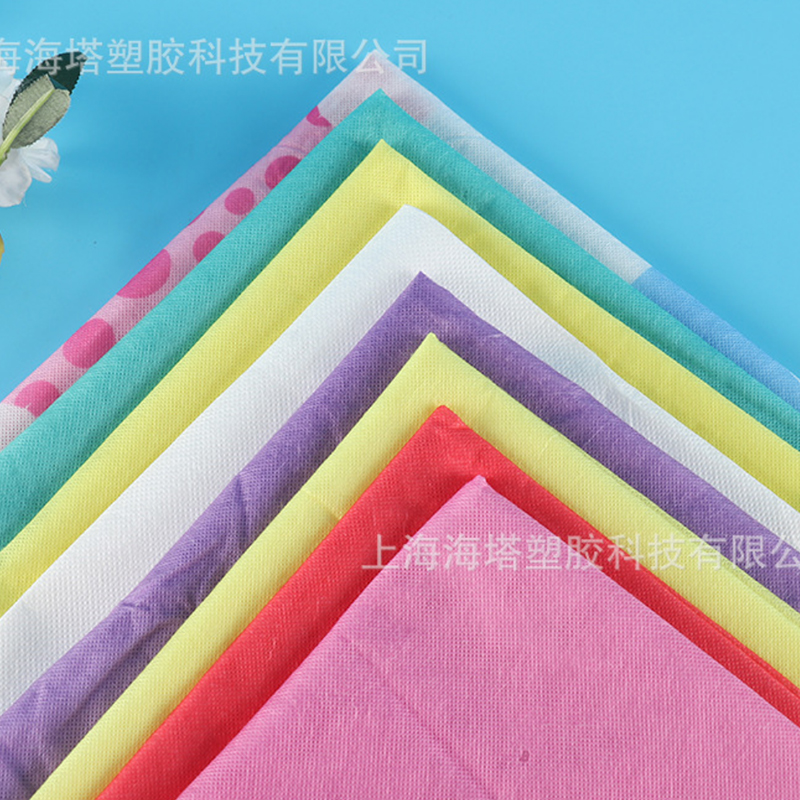

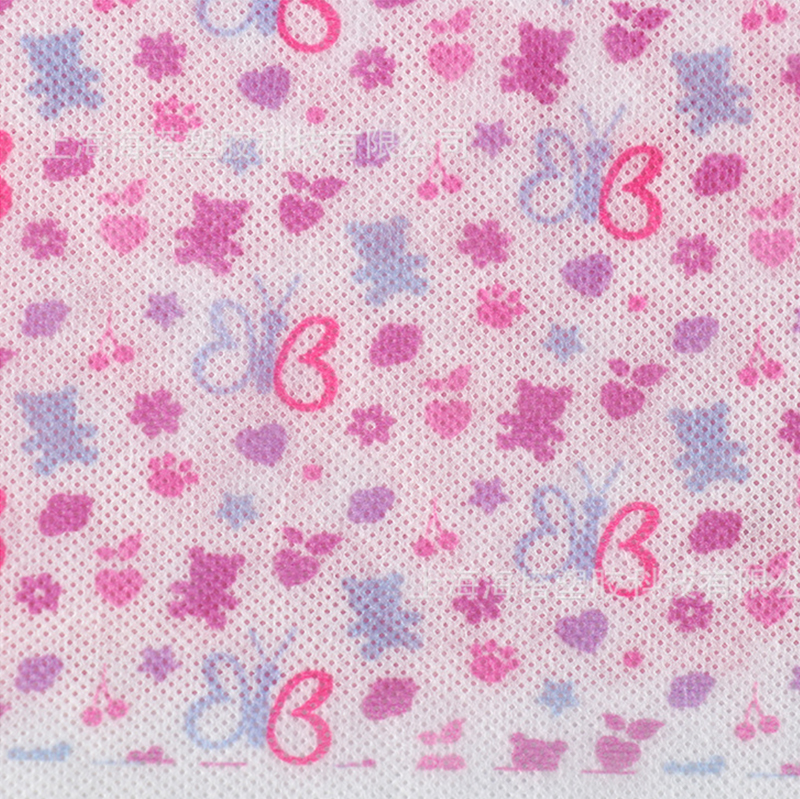

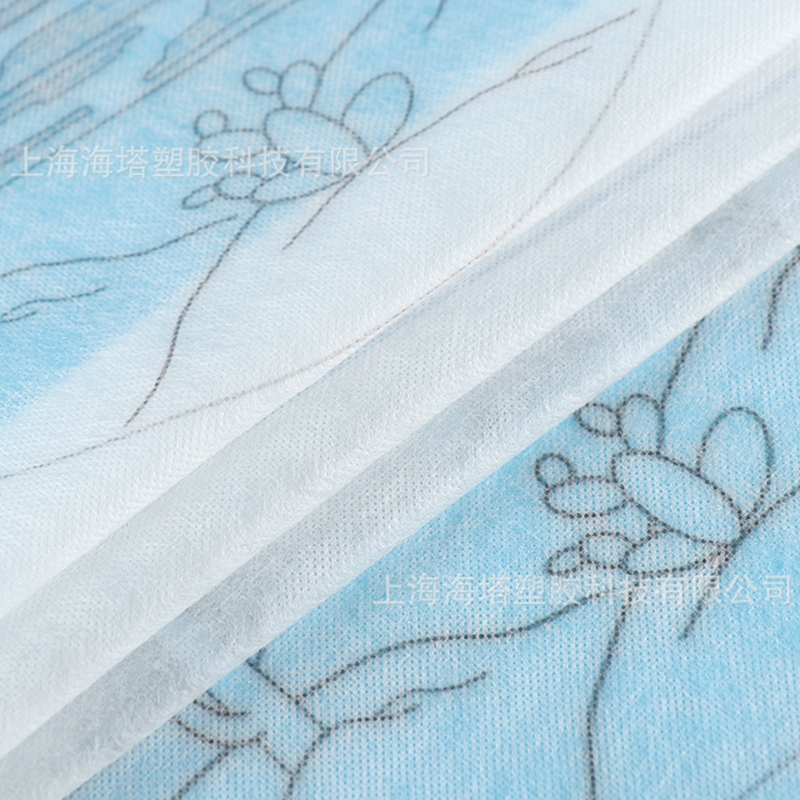

Low temperature printing non-woven fabric

How to control the printing temperature to ensure the clarity of the pattern during the production of low-temperature printing non-woven fabrics?

1. The importance of printing temperature control

In the production process of low-temperature printing water-soluble non-woven fabrics, the control of printing temperature is a key factor to ensure the clarity of the pattern and product quality. Too high temperature may cause the non-woven material to deform, shrink or dissolve, while too low temperature will prevent the ink from fully adhering, affecting the clarity and color saturation of the pattern. As a technology company specializing in the production of water-soluble materials, we are well aware of the importance of temperature control in the production process and have accumulated rich experience through years of practice.

The particularity of low-temperature printing water-soluble non-woven fabrics lies in their water solubility and heat sensitivity, which requires us to accurately control the printing temperature. Generally speaking, the ideal printing temperature range is usually between 60-80℃, depending on the type of ink used and the specific material of the non-woven fabric. Improper temperature control not only affects the appearance quality of the product, but may also change the physical properties of the material, such as air permeability, softness and water solubility.

2. Key technologies for temperature control

Accurate temperature monitoring system is the basis for achieving high-quality printing. Modern printing equipment is usually equipped with multi-point infrared thermometers and contact temperature sensors to monitor the temperature of printing plates, inks and non-woven surfaces in real time. Our company’s large-scale water-soluble film production line uses a high-precision temperature control system to ensure that the temperature of each production link is stable within the set range.

Ink selection and temperature adaptation are also crucial. Different formulations of ink have their optimal printing temperature range: water-based inks usually require 60-70℃; UV inks may require 70-80℃; and some specially formulated low-temperature inks can even achieve good printing effects at around 50℃. Our R&D team consists of experts in polymer science and materials engineering, who can recommend the most suitable ink and temperature combination according to different customer needs.

Printing speed and temperature balance is another factor to consider. Printing too fast will prevent the ink from fully penetrating the non-woven fibers, while too slow speed may cause local overheating. The best balance can be found by adjusting the ratio of printing speed to heating power. Our self-developed ERP management system can record and analyze these parameters to provide data support for production optimization.

3. Production process optimization

Preheating is an effective way to improve printing quality. Moderate preheating of non-woven fabrics before formal printing (usually 40-50℃) can reduce the temperature difference between the material and the ink and avoid deformation caused by sudden heat. Our hot melt film coating production line uses graded heating technology to enable the material to gradually adapt to temperature changes.

Reasonable configuration of the cooling system is also not to be ignored. Moderate cooling immediately after printing can fix the ink position and prevent the pattern from spreading. However, cooling too quickly may cause uneven shrinkage of the material. We use progressive cooling devices to ensure that the product can cool down smoothly after leaving the printing unit.

Environmental temperature and humidity control also has a significant impact on the printing effect. The production workshop should maintain constant temperature and humidity (usually 22-26℃, relative humidity 50-60%) to avoid fluctuations in external conditions affecting the printing process. Anhui Haita New Material Technology Co., Ltd. strictly implements the ISO9001-2016 quality management system and monitors the production environment 24 hours a day to ensure that each link is stable and reliable.

4. Quality inspection and feedback adjustment

Online inspection system can monitor printing quality in real time. High-resolution cameras can capture parameters such as pattern edge clarity and color uniformity, and immediately feedback to the temperature control system for adjustment once deviations are found. Our printing production line is equipped with advanced visual inspection devices to ensure that every meter of product meets the standards.

Regular sampling and testing is an indispensable supplementary means. In addition to automatic detection, samples should be taken for laboratory testing at regular intervals, including friction resistance testing, water-soluble speed testing, etc., to comprehensively evaluate the printing quality. The company has an independent R&D room and various small experimental equipment to quickly complete these inspections.

Data traceability and analysis helps long-term improvement. Record the temperature parameters, quality data and customer feedback of each production, and find the best process window through statistical analysis. The perfect quality management system we have established can track all data from raw material procurement to finished product delivery, providing a basis for continuous improvement.

5. Common Problem Solutions

Blurred pattern edges are usually caused by excessive temperature or excessive pressure. Solutions include: reducing the printing temperature by 5-10℃; checking whether the plate pressure is uniform; confirming whether the ink viscosity is appropriate. When dealing with such problems, our technicians will comprehensively consider the equipment status and material characteristics to quickly find the root cause of the problem.

Uneven color may be related to local temperature differences. Check whether the heating element is working properly; confirm whether the non-woven fabric is flat during the printing process; consider adding a preheating step. The company’s large-scale water-soluble film production line uses zoned temperature control technology, which can effectively avoid such problems.

Material deformation or shrinkage indicates that the temperature has exceeded the tolerance range. Production should be stopped immediately to check whether the temperature sensor is accurate; evaluate the thermal stability of the non-woven fabric; and replace a more suitable ink type if necessary. With expertise in film production, our team can quickly diagnose and solve such problems.

6. Future Development Trends

Intelligent temperature control system will become the industry standard. The optimal printing parameters are predicted and adjusted through artificial intelligence algorithms to achieve true “one-click optimization”. The next-generation central material control system we are developing will integrate more intelligent functions to provide customers with better products.

Advances in low-temperature ink technology will expand the application boundaries. New inks are expected to achieve excellent printing effects at lower temperatures and further reduce energy consumption. The R&D team of Anhui Haita New Material Technology Co., Ltd. continues to focus on the forefront of material science and continuously launches innovative solutions.

Enhanced environmental standards will drive process innovation. As environmental protection requirements become increasingly stringent, the combined advantages of water-soluble materials and low-temperature printing will become more prominent. We strictly implement the international quality management system to ensure that our products meet the highest environmental standards from raw materials to production processes.
